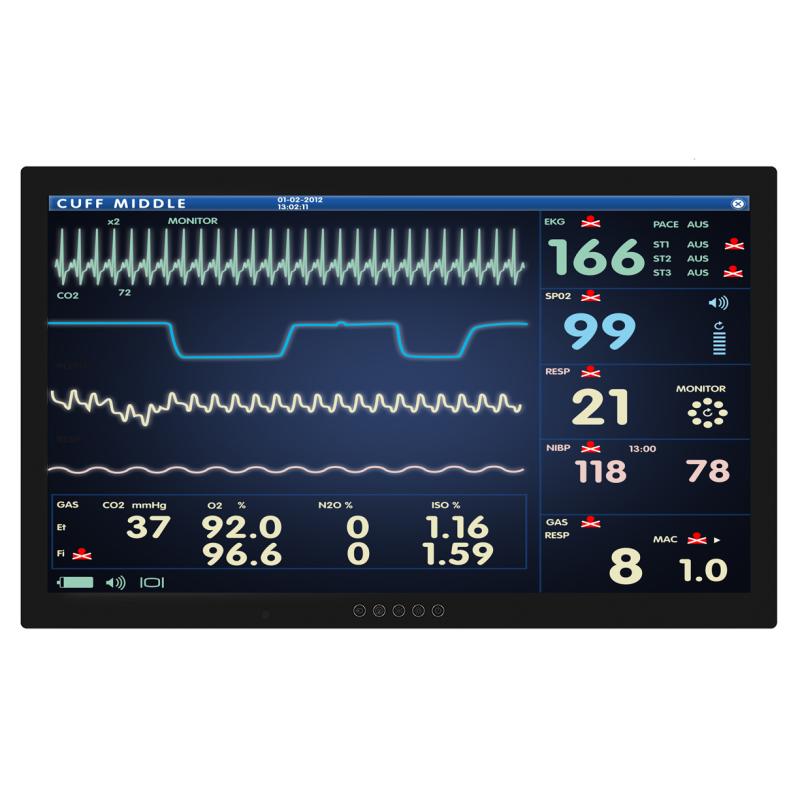

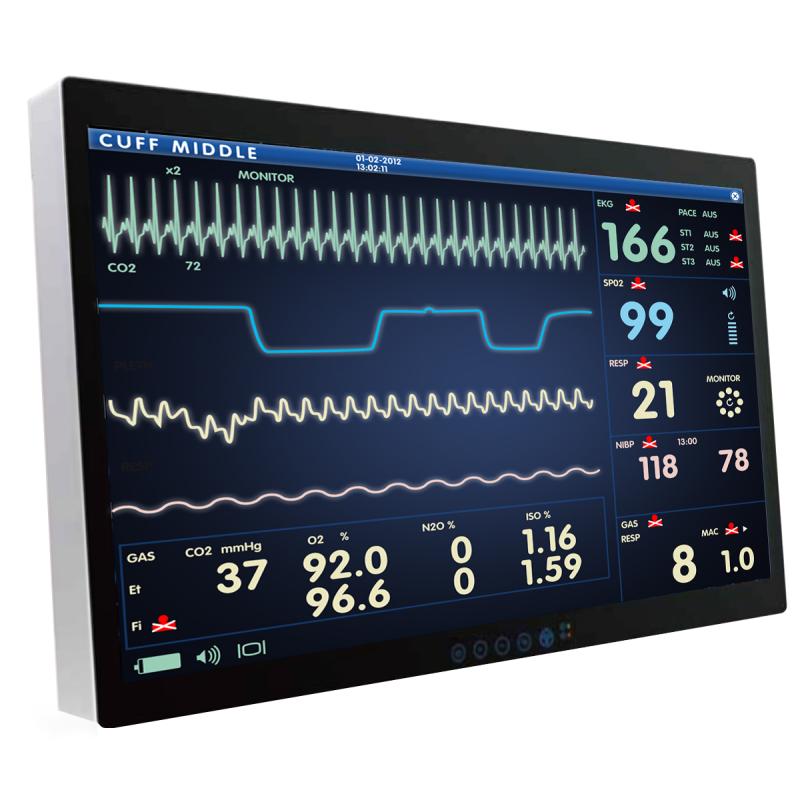

Onyx 32" 4K-UHD Medical LCD Monitor

Preis auf Anfrage

Lieferzeit: 2-3 Wochen

Beschreibung

  • 32" Display with UHD 4K (3840 x 2160) native resolution
  • Thin and compact design with impact resistant screen
  • 3D Look Up Table (LUT) providing rich and deep depth perception
  • Fanless and ventless design, easy-to-clean
  • Wide view angle 178°(H)/178°(V)
  • True Flat Screen with PCT Touch
  • Invisible OSD Design
  • Antimicrobial Surface Coating


Specifications
Display
Size 32"
Resolution 3840 x 2160 (UHD 4K)
Aspect Ratio 16:9, Full, 16:10, 4:3, 5:4, 1:1
Brightness (Typ.) 350 nits
Viewing Angle
(CR=10)(Typ.)
178°(H)/178°(V)
Contrast Ratio (Typ.) 1000:1
Touch Screen Projective capacitive touch screen (optional)

System
OS Support Windows® XP, Windows® 7, Windows® 10
Image Support DICOM , Gamma correction ,3DLUT , 1DLUT
Further Features Ambient light sensor, IR Control

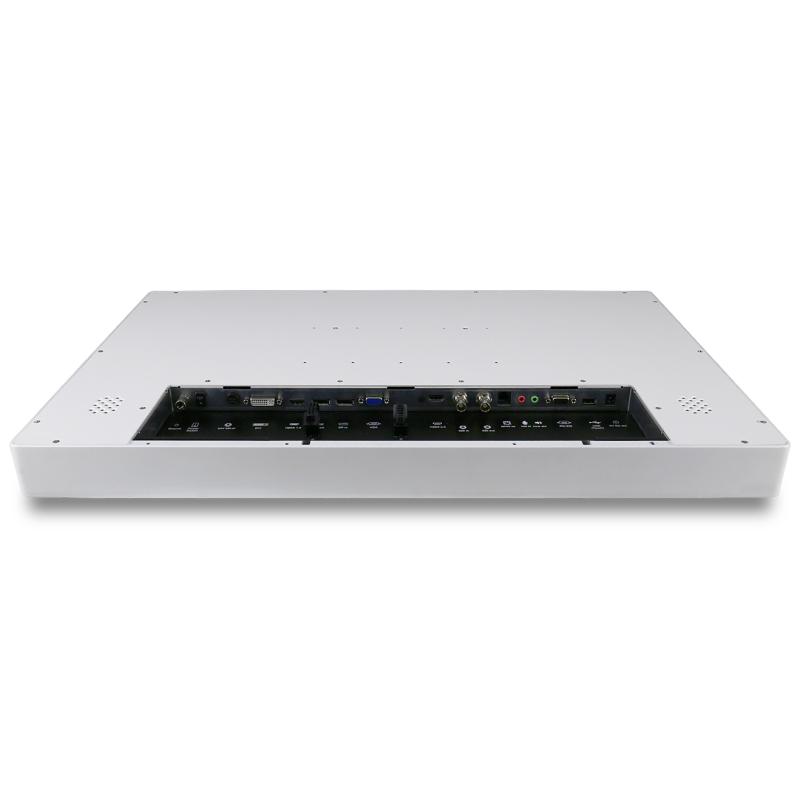

I/O
Input Signal
3G SDI x 1
VGA x 1
HDMI 2.0 x1
Dual DVI in x1
DP 1.2 x1
HDMI 1.4 x1
Audio In x1

Output Signal
DP (Multi-Stream Transport) x 1
Audio Out x 1
5V out x 1
SDI (Loop Through), support to 1080P* x 1

Mechanical and Environmental
Power Consumption
24V DC in 150W, with external
110-240V AC to DC Adapte
Operating Temperature 5°C ~ 40°C(41°F ~ 104°F)
Storage Temperature -10°C ~ 60°C(14°F ~ 140°F)
Storage Humidity 10%~90%@35°C, non-condensing
Housing Antimicrobial Surface Coating
IP Rating Protection: front IP65 - rear IP22
Net Weight 11 kg (24.2lbs)
Gross weight 13 kg
Dimension 777.58 x 477.62 x 48 mm

Certifications
CE: EN 60601-1:2005 + A1:2015 (Ed. 4.0)
EN 60601-1:2006/A1:2013/A12:2014(V3.1)
UL : ANSI/AAMI ES60601-1:2005/ A1:2012 and
C1:2009/(R)2012 and A2:2010/(R)2012
cUL: CAN/CSA-C22.2 No.60601-1:14
FCC part 15B

Artikelnummer(n) des Herstellers

ACCEL-M3201
