SPECpower_ssj2008

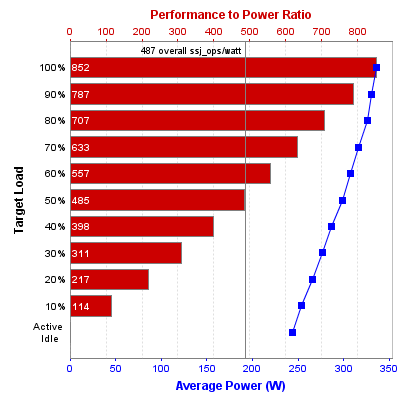

ICO Innovative Computer GmbH Green Server 2HE				SPECpower_ssj2008 = 487 overall ssj_ops/watt
Test Sponsor:	ICO Innovative Computer GmbH	SPEC License #:	3715	Hardware Availability:	Jan-2009
Tested By:	ICO Innovative Computer GmbH	Test Location:	Diez, Germany	Software Availability:	Jan-2009
System Source:	Parts Built	Test Date:	15.01.2009	Publication:	Unpublished

Hardware
Hardware Vendor:	ICO Innovative Computer GmbH
Model:	Green Server 2HE
CPU Name:	Intel Xeon
CPU Characteristics:	L5430, 2,66GHz, 12MB L2 Cache
CPU Frequency (MHz):	2660
CPU(s) Enabled:	8 cores, 2 chips, 4 cores/chip
Hardware Threads / Core:	1
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	12 MB I+D on chip per chip, 6MB shared / 2 Cores
Tertiary Cache:	None
Other Cache:	None
Memory Amount (GB):	16
# and size of DIMM:	8 x 2048 MB
Memory Details:	Qimonda HYS72T256420HFN-3s-B DDR2-667 CL5 FBDIMM
Power Supply Quantity and Rating (W):	2 x 500
Power Supply Details:	Emacs Zippy M1Z2/5500V3V
Disk Drive:	4x 500GB WD5000ABPS Raid 5
Disk Controller:	Areca ARC-1222
# and type of Network Interface Cards (NICs) Installed:	2 x onboard gigabit
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	PS2
Mouse:	PS2
Monitor:	Yes
Optical Drives:	None
Other Hardware:	None

Software
Power Management:	Disabled
Operating System (OS):	Microsoft Windows Server 2008 Standard
OS Version:	Service Pack 1 (64-bit)
Filesystem:	NTFS
JVM Vendor:	BEA JRockit(R)
JVM Version:	BEA JRockit(R)R27.6.0-jre1.6.0_05
JVM Command-line Options:	-Xms3200m -Xmx3200m -XXaggressive -XXlazyunlocking -XXthroughputcompaction -XXlargepages -Xgc:genpar -XXcallprofiling -XXtlasize:min=4k,preferred=1024k
JVM Affinity:	start/affinity [03,0C,30,C0]
JVM Instances:	4
JVM Initial Heap (MB):	3200
JVM Maximum Heap (MB):	3200
JVM Address Bits:	64
Benchmark Version:	SPECpower_ssj2008 1.1.3
Director Location:	Controller
Other Software:	None

Hardware
Hardware Vendor:	ICO Innovative Computer GmbH
Model:	None
CPU Description:	Intel E2160
Memory amount (GB):	2

Target Load	Electrical Data				Environmental Data
Target Load	Average Voltage (V)	Average Current (A)	Average Power Factor	Average Power (W)	Minimum Ambient Temperature (°C)
100%	230	1,51	0,967	336	25,8
90%	230	1,49	0,966	331	25,8
80%	230	1,47	0,965	326	25,8
70%	231	1,43	0,962	316	25,8
60%	231	1,39	0,959	308	25,8
50%	231	1,35	0,956	298	25,8
40%	231	1,31	0,952	287	25,8
30%	231	1,26	0,949	276	25,8
20%	231	1,21	0,947	265	25,8
10%	231	1,16	0,948	254	25,8
Active Idle	231	1,11	0,949	244	25,8

Line Standard	Average Power Factor	Minimum Temperature (°C)	Elevation (m)
230V / 50 Hz / 1 phase / 2 wires	0,956	25,8	110

See the Aggregate Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SPECpower_ssj2008 1.1.3, May 15, 2008]
